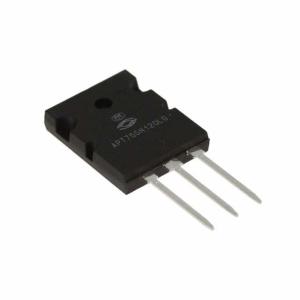

APT75GN120LG IGBT Power Module Transistors IGBTs Single

Product Categories

KZ TECHNOLOGY (HONGKONG) LIMITED

Contact Now

Part Number : APT75GN120LG

Manufacturer : Microsemi Corporation

Description : IGBT 1200V 200A 833W TO264

Category : Transistors - IGBTs - Single

Family : Transistors - IGBTs - Single

Place of Origin : Original

MOQ : Negotiable

Price : Negotiable

Delivery Time : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Contact Now

Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	200A
Current - Collector Pulsed (Icm)	225A
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 75A
Power - Max	833W
Switching Energy	8620µJ (on), 11400µJ (off)
Input Type	Standard
Gate Charge	425nC
Td (on/off) @ 25°C	60ns/620ns
Test Condition	800V, 75A, 1 Ohm, 15V
Reverse Recovery Time (trr)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-264-3, TO-264AA
Supplier Device Package	TO-264 [L]
Shipment	UPS/EMS/DHL/FedEx Express.
Condtion	New original factory.
